Capacities and Specifications

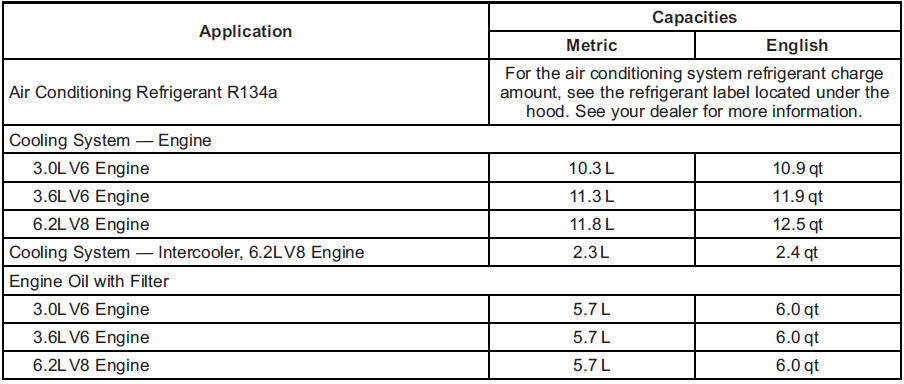

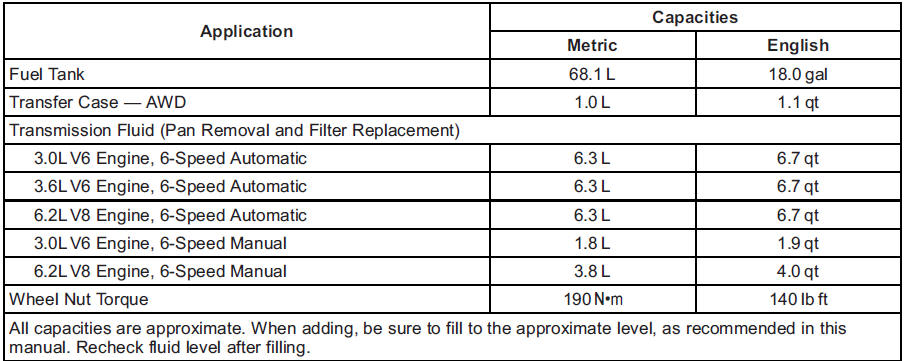

The following approximate capacities are given in metric and English conversions. See Recommended Fluids and Lubricants for more information.

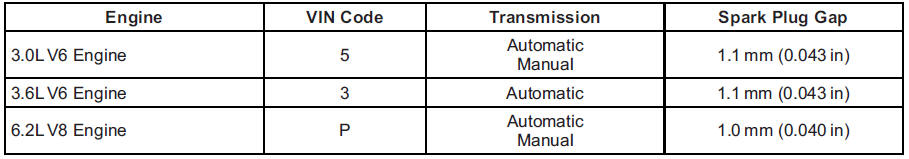

Engine Specifications

Engine Specifications

Engine Drive Belt Routing
