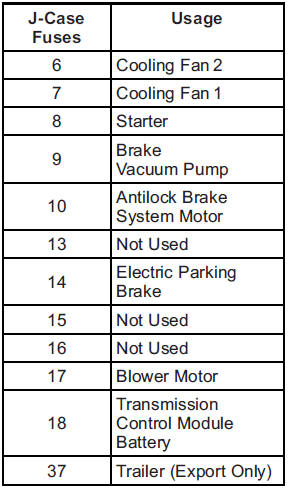

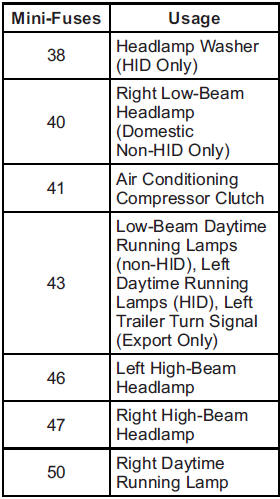

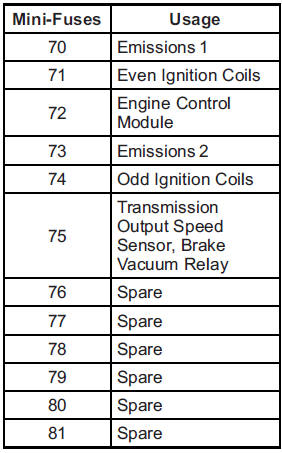

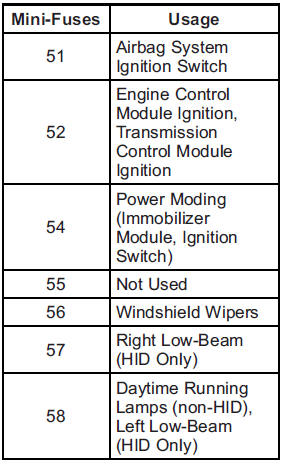

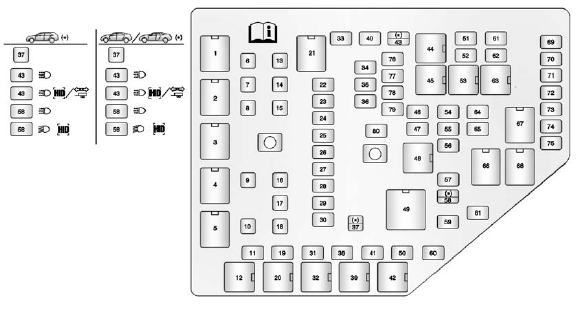

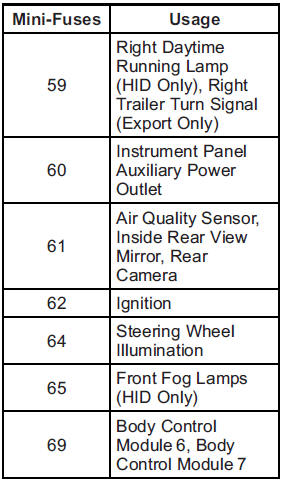

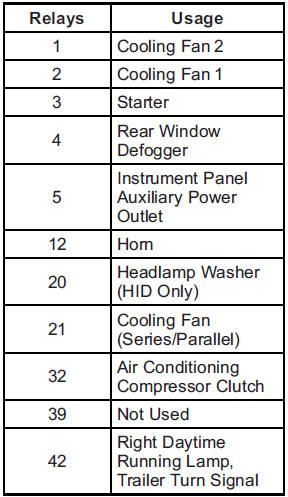

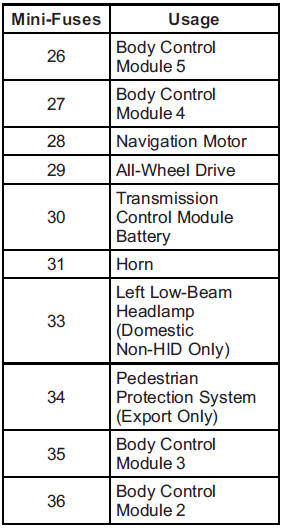

Engine Compartment Fuse Block (CTS Wagon)
This fuse block is on the left side of the engine compartment.
Lift the fuse block cover to access the fuses.
The vehicle may not be equipped with all of the fuses and relays shown.
Notice: Spilling liquid on any electrical component on the vehicle may damage it. Always keep the covers on any electrical component.
