Rear Compartment Fuse Block (CTS-V Coupe and Sedan)

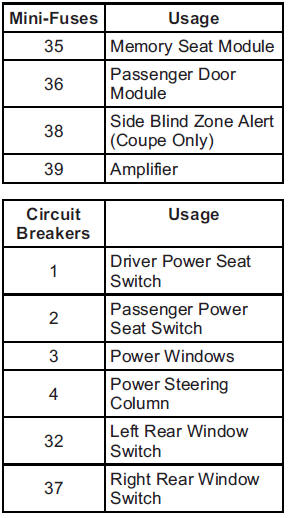

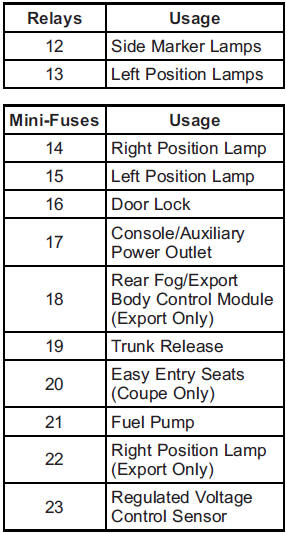

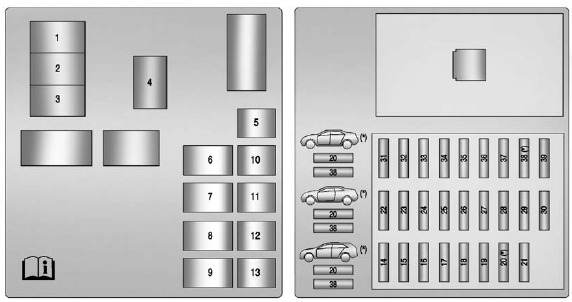

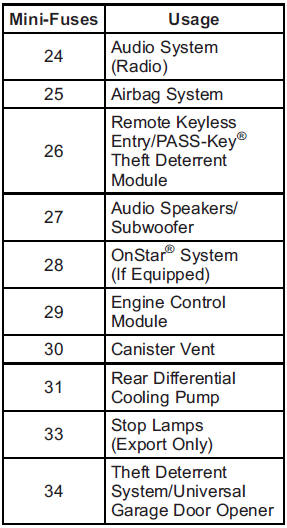

The rear compartment fuse block is located on top of the battery, on the right side of the trunk. The battery access door must be removed to access the fuse block.
The vehicle may not be equipped with all of the fuses, relays, and features shown.
