Rear Compartment Fuse Block (CTS-V Wagon)

Cadillac CTS / Cadillac CTS Owners Manual / Vehicle Care / Electrical System / Rear Compartment Fuse Block (CTS-V Wagon)

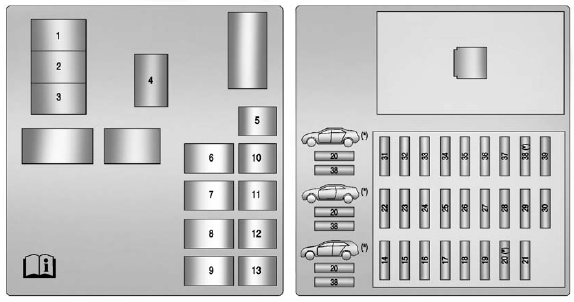

The rear compartment fuse block is located on the passenger side of the vehicle, behind the trim panel in the rear compartment.

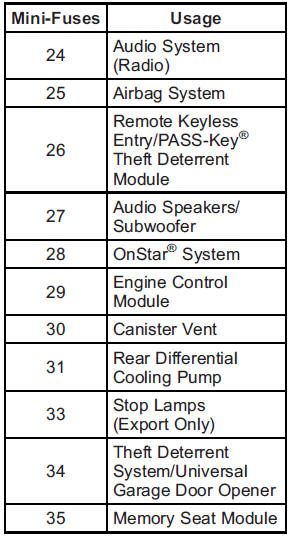

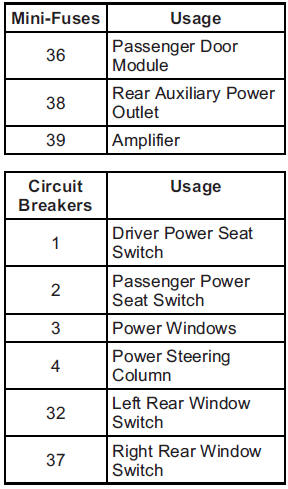

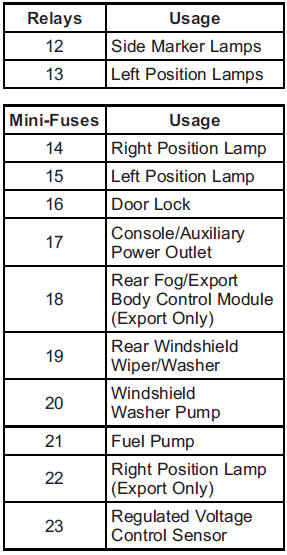

The vehicle may not be equipped with all of the fuses and relays shown.
