Manual Reclining Seatbacks
WARNING
If either seatback is not locked, it could move forward in a sudden stop or
crash. That could cause injury to the person sitting there.
Always push and pull on the seatbacks to be sure they are locked.

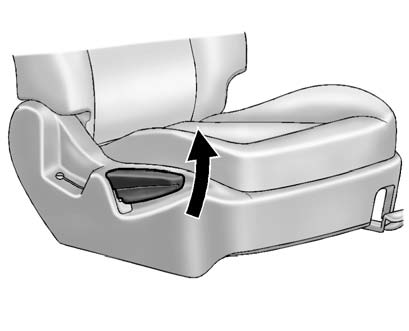

To recline a manual seatback:
1. Lift the lever.
2. Move the seatback to the desired position, and then release the lever to
lock the seatback in place.
3. Push and pull on the seatback to make sure it is locked.
To return the seatback to the upright position:
1. Lift the lever fully without applying pressure to the seatback, and the
seatback will return to the upright position.
2. Push and pull on the seatback to make sure it is locked.
See also:
Lumbar Adjustment
To adjust the lumbar support:
Press and hold the front or rear of the control to increase or decrease
lumbar support.
Press and hold the top or bottom of the control to raise or lower the
...
