Heated and Ventilated Front Seats
WARNING
If you cannot feel temperature change or pain to the skin, the seat heater may
cause burns even at low temperatures.
To reduce the risk of burns, people with such a condition should use care when
using the seat heater, especially for long periods of time. Do not place
anything on the seat that insulates against heat, such as a blanket, cushion,
cover, or similar item. This may cause the seat heater to overheat.
An overheated seat heater may cause a burn or may damage the seat.
" width=409 height=331
id="_x0000_i1208" src="images/books/1183/2/index.51.gif" border=0>

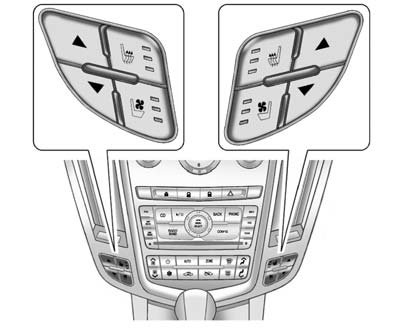

Heated and Ventilated Seat Buttons Shown, Heated Seat Buttons Similar
If available, the buttons are near the climate controls on the instrument panel. To operate, the ignition must be in ON/RUN/START.
Press
to heat the driver or passenger seat.
Press
, if available, to ventilate the driver or passenger seat.
Press the button once for the highest setting. With each press of the button, the seat will change to the next lower setting, and then to the off setting. The lights indicate three for the highest setting and one for the lowest.
The passenger seat may take longer to heat up.
