Rear Safety Belt Comfort Guides

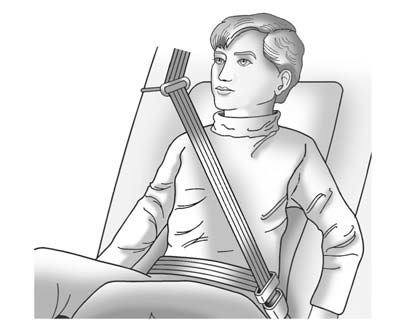

This vehicle may have rear shoulder belt comfort guides for the outboard passenger positions in the rear seat. If not, they are available through your dealer. The guides may provide added safety belt comfort for older children who have outgrown booster seats and for some adults. When installed on a shoulder belt, and properly adjusted, the comfort guide positions the belt away from the neck and head.
Here is how to install a comfort guide to the safety belt:
1. Remove the guide from its storage pocket on the side of the seat.

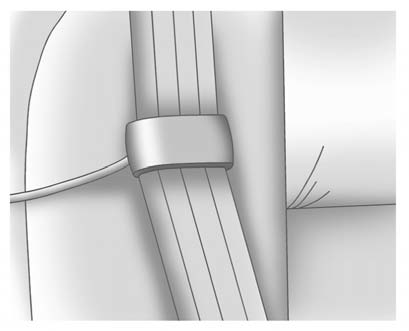

2. Place the guide over the belt, and insert the two edges of the belt into the slots of the guide.
3. Be sure that the belt is not twisted and it lies flat.
The elastic cord must be under the belt and the guide on top.
WARNING
A safety belt that is not properly worn may not provide the protection needed
in a crash.
The person wearing the belt could be seriously injured. The shoulder belt
should go over the shoulder and across the chest. These parts of the body are
best able to take belt restraining forces.
4. Buckle, position, and release the safety belt as described previously in this section. Make sure the shoulder portion of the belt is on the shoulder and not falling off of it. The belt should be close to, but not contacting, the neck.

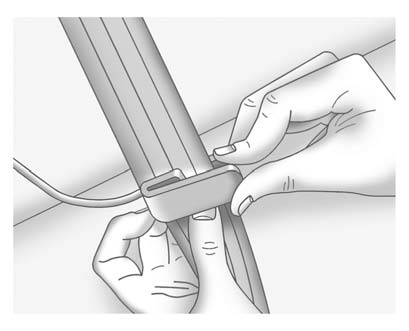

To remove and store the comfort guide, squeeze the belt edges together so that the safety belt can be removed from the guide.
Slide the guide back into its storage pocket located on the side of the seat.
