Fuel Economy Gauge

id=" width=409 height=331 id="_x0000_i1315" src="images/books/1183/3/index.55.gif" border=0>

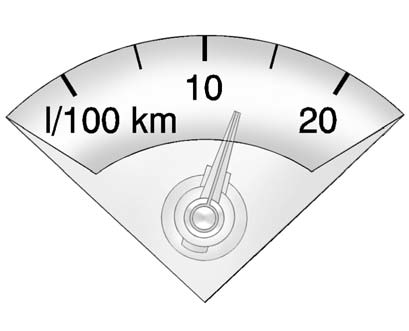

Metric

id=" width=409 height=331 id="_x0000_i1316" src="images/books/1183/3/index.56.gif" border=0>

English

The gauge shows the fuel usage that the vehicle is currently achieving in MPG and in liters per 100 kilometers (l/100 km).

MIN/20: Is when the least efficient fuel economy usually occurs during acceleration or when idling.

MAX/l/100 km: Is when the best fuel economy is being achieved.

This gauge moves often as it is an instantaneous calculation based on current driving conditions.
