Instrument Panel Fuse Block

border=0>

The instrument panel fuse block is located in the center console between the driver and passenger seats. To access the fuses, open the fuse panel door from the passenger side by pulling it out.

To reinstall the door, push the door back into its original location.

The vehicle may not be equipped with all of the fuses, relays and features shown.

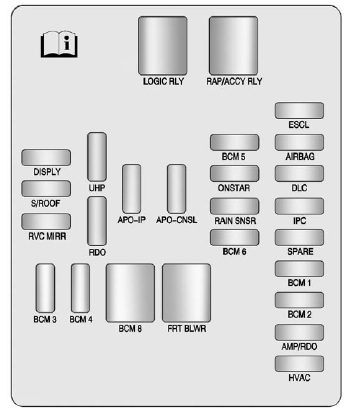

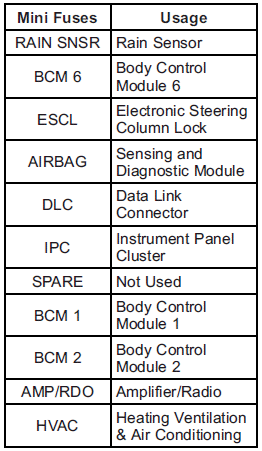

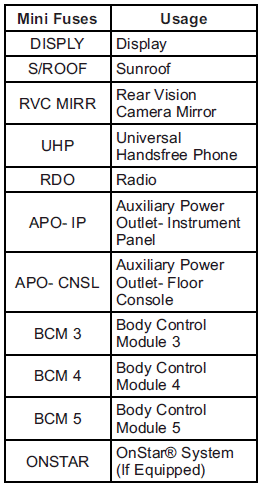

id=" width=353 height=414 id="_x0000_i1729" src="images/books/1183/8/index.33.gif" border=0>
