Front Wiper Blade Replacement

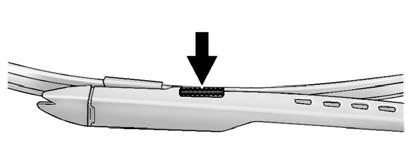

1. Pull the windshield wiper arm connector away from the windshield.

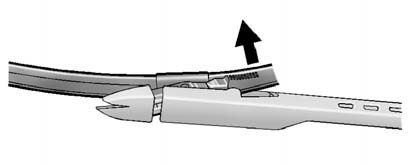

2. Squeeze the grooved areas on each side of the blade, and turn the blade assembly away from the arm connector.
3. Install the new blade onto the arm connector and make sure the grooved areas are fully set in the locked position.
For the proper type and size, see Maintenance Replacement Parts .
