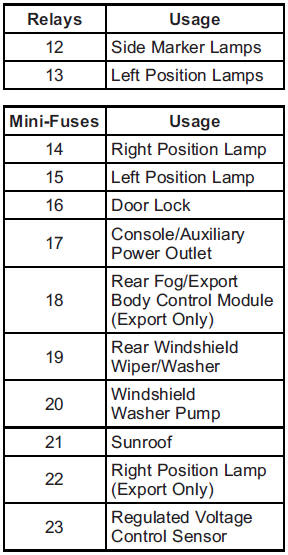

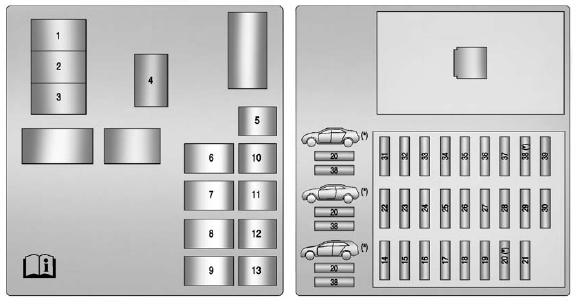

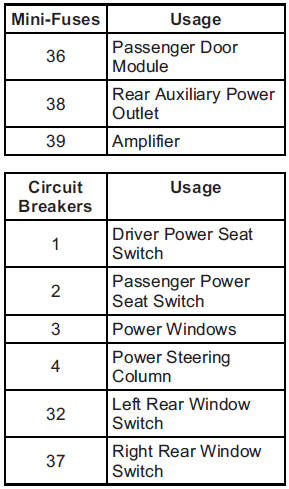

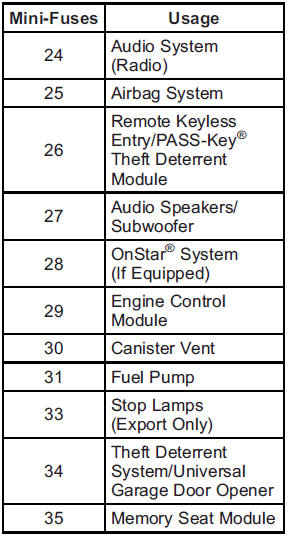

Rear Compartment Fuse Block (CTS Wagon)
This fuse block is on the right side of the vehicle, behind the trim panel in the rear compartment.
The vehicle may not be equipped with all of the fuses, relays, and features shown.
