D-Ring Sliders

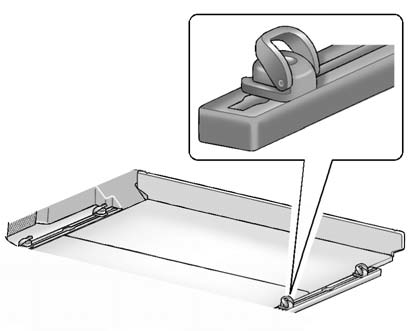

For vehicles with a D-ring system, there are four D-ring sliders that move along rails. These can be used as tie-downs when storing cargo.

border=0>

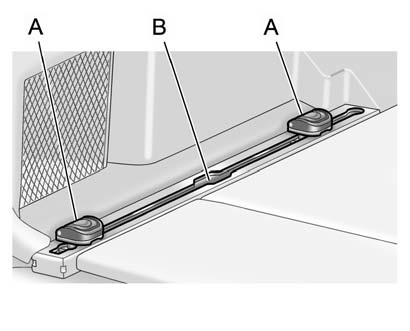

Insert the D-ring sliders (A) into the channel (B) located in the middle of the rail. Push the button to move the D-ring slider along the rail.

border=0>

The loop of the D-ring slider must be facing inward toward the storage area and the ring must be in the up position for proper usage.
