Engine Compartment Fuse Block

To remove the fuse block cover, press the clips on the cover and lift it straight up.

Notice: Spilling liquid on any electrical component on the vehicle may damage it. Always keep the covers on any electrical component.

id=" width=467 height=246 id="_x0000_i1720" src="images/books/1183/8/index.24.gif" border=0>

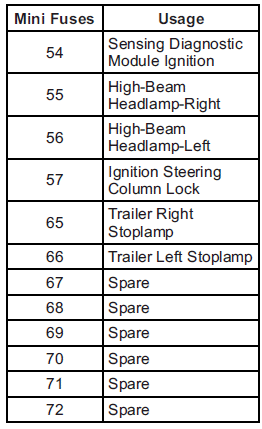

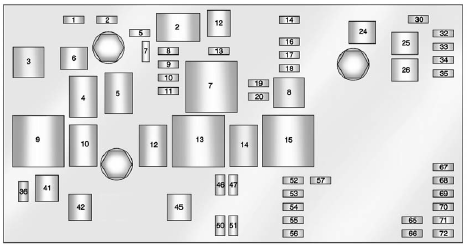

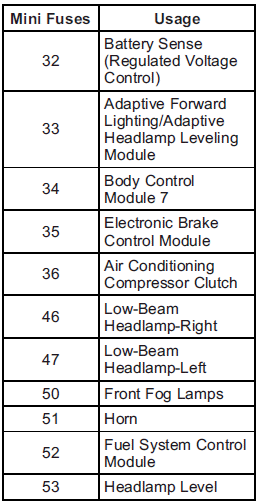

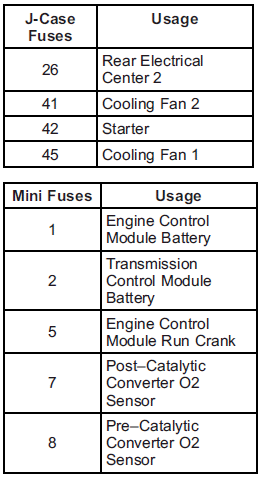

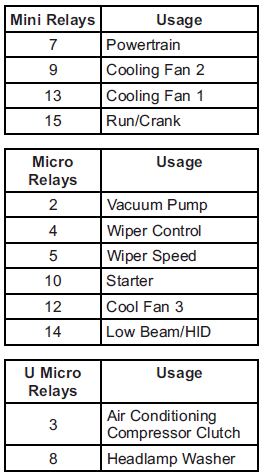

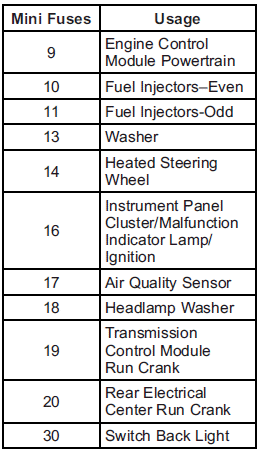

Engine Compartment Fuse Block

The vehicle may not be equipped with all of the fuses, relays, and features shown.
