Adjustable Throttle and Brake Pedal
If the vehicle has this feature, the position of the throttle and brake pedals can be adjusted.

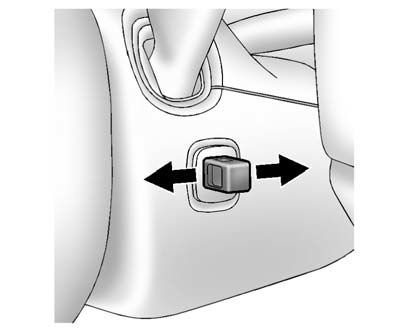

The switch used to adjust the pedals is located on the right side of the steering column, below the wiper stalk. Pull the switch toward you to move the pedals further from the floor, or push the switch away from you to move the pedals closer to the floor.
Adjust the throttle and brake pedals while the vehicle is in P (Park) without pressing on the pedals.
The pedals cannot be adjusted while the vehicle is in R (Reverse) or when cruise control is engaged.
The throttle and brake pedals can also be adjusted while driving.
