Instrument Panel Fuse Block

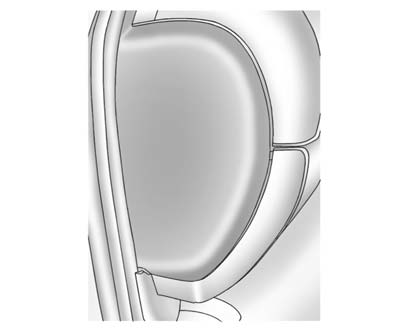

The instrument panel fuse block access door is located on the driver side edge

The instrument panel fuse block access door is located on the driver side edge of the instrument panel.

Pull off the cover to access the fuse block.

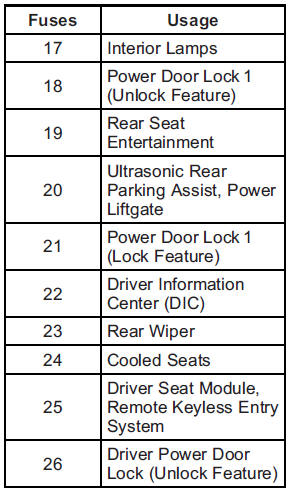

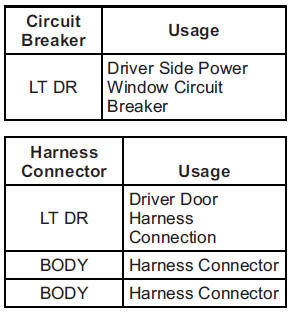

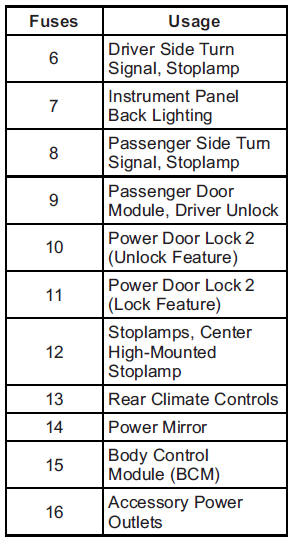

The vehicle may not be equipped with all of the fuses, relays, and features shown.

The vehicle may not be equipped with all of the fuses, relays, and features shown.

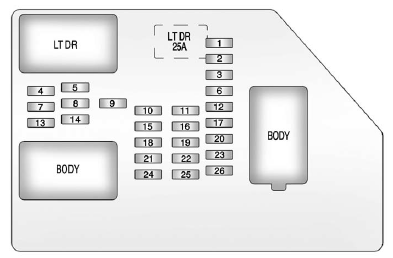

Center Instrument Panel Fuse Block
