Low-Beam Headlamps/Daytime Running Lamps (DRL), High-Beam Headlamps (Base)

Cadillac SRX / Cadillac SRX Owners Manual / Vehicle Care / Bulb Replacement / Headlamps / Low-Beam Headlamps/Daytime Running Lamps (DRL), High-Beam Headlamps (Base)

border=0>

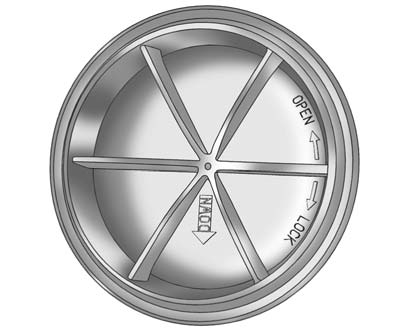

1. From the back side of the headlamp assembly, remove the top cap to replace the low-beam headlamp/DRL bulb.

border=0>

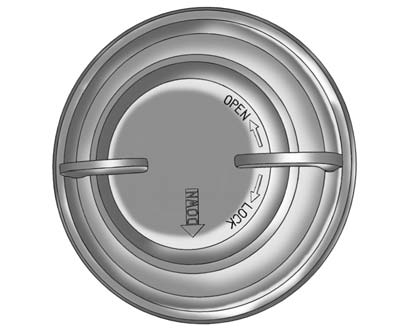

2. From the back side of the headlamp assembly, remove the bottom cap to replace the high-beam headlamp bulb.
3. Disconnect electrical connector.
4. Remove the bulb socket from the headlamp assembly.
5. Replace the bulb in the bulb socket.
6. Install the bulb socket in the headlamp assembly.
7. Connect the electrical connector.
8. Install the cap with the down arrow pointing down in the back of the headlamp assembly.
9. For driver side, reinstall the underhood electrical center cover by latching three clips.
10. For passenger side, reinstall the air filter/cleaner assembly base by pushing to seat.

Verify the base is seated securely, then install the engine air filter/cleaner assembly.
