Headlamps

id=" width=409 height=331 id="_x0000_i1701" src="images/books/1183/8/index.5.gif" border=0>

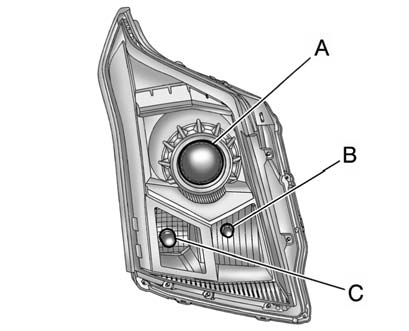

Base Headlamp Assembly (Front View Passenger Side)

A. Low—Beam Headlamp/Daytime Running Lamp (DRL)
B. High—Beam Headlamp
C. Turn Signal Lamp

id=" width=409 height=331 id="_x0000_i1702" src="images/books/1183/8/index.6.gif" border=0>

Base Headlamp Assembly (Rear View Passenger Side)

A. Low—Beam Headlamp/Daytime Running Lamp (DRL)
B. High—Beam Headlamp
C. Turn Signal Lamp

id=" width=409 height=331 id="_x0000_i1703" src="images/books/1183/8/index.7.gif" border=0>

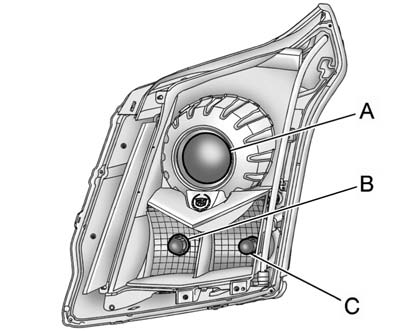

Uplevel Headlamp Assembly (Front View Driver Side)

A. High/Low—Beam Headlamp (To be replaced at dealer only)
B. Daytime Running Lamp (DRL)
C. Turn Signal Lamp

id=" width=409 height=331 id="_x0000_i1704" src="images/books/1183/8/index.8.gif" border=0>

Uplevel Headlamp Assembly (Rear View Driver Side)

A. High/Low—Beam Headlamp (To be replaced at dealer only)
B. Daytime Running Lamp (DRL)
C. Turn Signal Lamp
