Rear Compartment Fuse Block (CTS Coupe and Sedan)

Cadillac CTS / Cadillac CTS Owners Manual / Vehicle Care / Electrical System / Rear Compartment Fuse Block (CTS Coupe and Sedan)

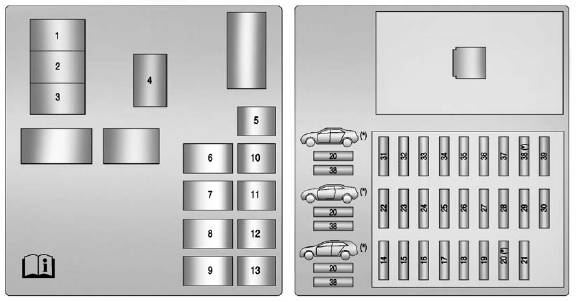

The rear compartment fuse block is located on top of the battery, on the right side of the trunk. The battery access door must be removed to access the fuse block.

The vehicle may not be equipped with all of the fuses, relays, and features shown.

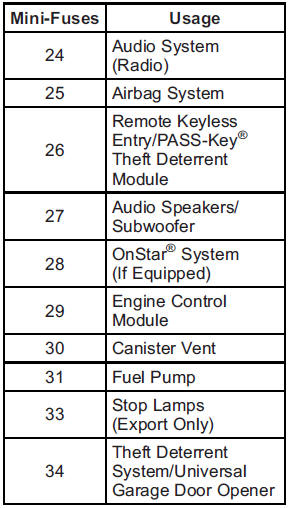

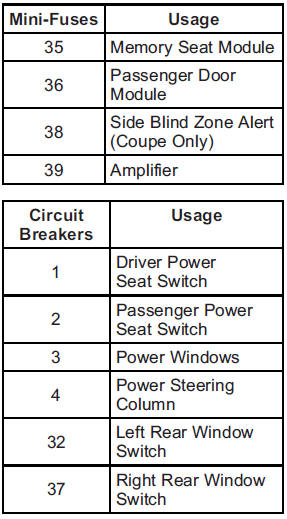

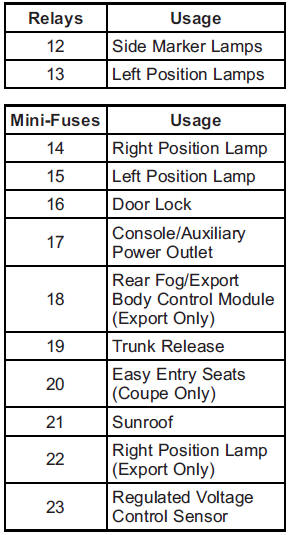

Rear Compartment
