Mirror Adjustment

Exterior

id=" width=410 height=331 id="_x0000_i1082" src="images/books/1183/1/index.54.gif" border=0>

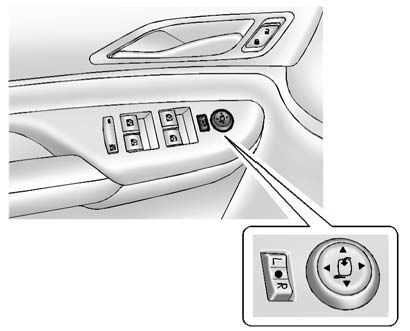

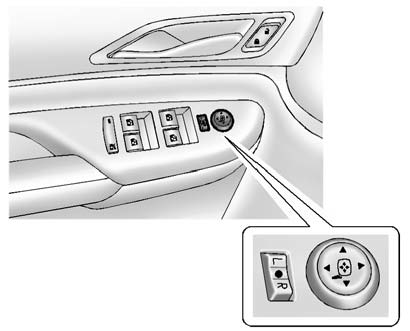

Manual Folding Mirrors Shown

To adjust the mirror:

1. Move the selector switch to L (Left) or R (Right) to choose the driver or passenger mirror.
2. Press the arrows on the control pad to move each mirror to the desired position.
3. Return the selector switch to the center position.

Manual Folding Mirrors

Vehicles with manual fold mirrors are folded inward toward the vehicle to prevent damage when going through an automatic car wash.

Push the mirror outward to return it to the original position.

Power Folding Mirrors

border=0>

Vehicles with power folding mirrors, to fold the mirrors:

1. With the selector switch in the ) position, press the down arrow on the control pad. Both mirrors will automatically fold.
2. Pressing the down arrow again will return the mirrors to their original position.

See Folding Mirrors.

Automatic Dimming Mirror

If the vehicle has the automatic dimming mirror, the driver outside mirror and the inside rearview mirror automatically adjust for the glare of headlamps behind you.

See Automatic Dimming Mirror or Automatic Dimming Rearview Mirror.
