Exterior Lighting

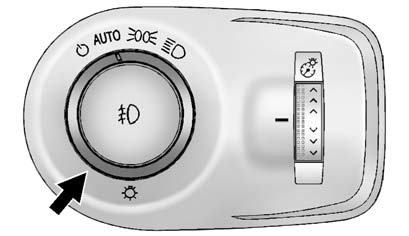

The exterior lamps control is located on the instrument panel to the left of the steering column.
The exterior lamps control has four positions:
: Briefly turn to this position to turn the automatic light control
off or on again.
AUTO: Turns the headlamps on automatically at normal brightness, together with the parking lamps, taillamps, license plate lamps, and instrument panel lights.
: Turns the parking lamps on together with the taillamps, license
plate lamps, and instrument panel lights.
: Turns the headlamps on together with the parking lamps, taillamps,
license plate lamps, and instrument panel lights.
: For vehicles with fog lamps, press to turn the lamps on or off.
For more information, see:
- Exterior Lamp Controls.
- Daytime Running Lamps (DRL) .
