Windshield Wiper/Washer

border=0>

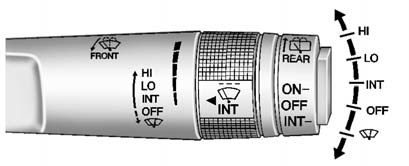

The windshield wiper/washer lever is located on the right side of the steering column. With the ignition in ACC/ACCESSORY or ON/RUN/START, move the windshield wiper lever to select the wiper speed.

HI: Use for fast wipes.
LO: Use for slow wipes.

border=0>

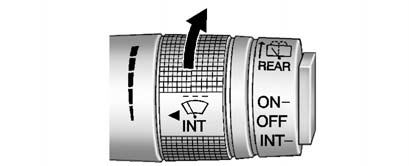

INT: (Intermittent Wipes): Move the lever up to INT for intermittent wipes, then turn the src=INT band up for more frequent wipes or" width=30 height=20 id="_x0000_i1096" src="images/books/1183/1/index.68.gif" border=0>INT band up for more frequent wipes or down for less frequent wipes. If the vehicle has Rainsense™, see the following Rainsense information.

OFF: Use to turn the wipers off.

border=0>: For a single wipe, briefly move the wiper lever down. For several wipes,: For a single wipe, briefly move the wiper lever down. For several wipes, hold the wiper lever down.

Windshield Washer

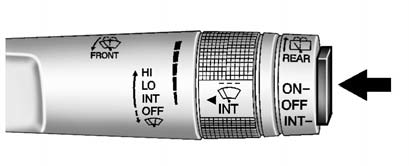

Pull the windshield wiper lever toward you to spray windshield washer fluid and activate the wipers.

See Windshield Wiper/Washer and Rear Window Wiper/ Washer, if equipped.

Rainsense™

For vehicles with Rainsense:

INT (Rainsense Wipe Sensitivity Control): Move the windshield wiper lever to INT. Turn the src=INT band on the wiper lever to adjust the" width=30 height=20 id="_x0000_i1098" src="images/books/1183/1/index.68.gif" border=0>INT band on the wiper lever to adjust the sensitivity.

- Turn the band up for more sensitivity to moisture.
- Turn the band down for less sensitivity to moisture.
- Move the windshield wiper lever out of the INT position to deactivate Rainsense.

Rear Window Wiper/Washer

The rear wiper controls are on the end of the windshield wiper lever.

border=0>

ON: Press the upper portion of the button for continuous rear window wipes.

OFF: The rear wiper turns off when the button is returned to the middle position.

INT (Intermittent Rear Wipes):

Press the lower portion of the button to set a delay between wipes.

border=0>: Push the windshield wiper lever forward to spray washer fluid on the: Push the windshield wiper lever forward to spray washer fluid on the rear window.

See Windshield Wiper/Washer and Rear Window Wiper/Washer.
