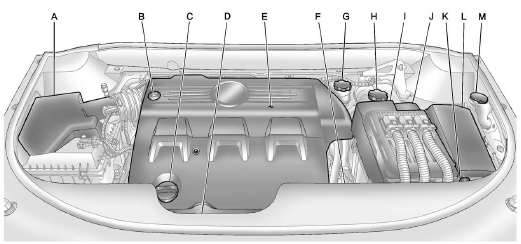

Engine Compartment Overview

border=0>

A. Engine Air Cleaner/Filter.

B. Power Steering Reservoir and Cap (Under Engine Cover).

See Power Steering Fluid.

C. Engine Oil Fill Cap. See Engine Oil.

D. Engine Oil Dipstick (Out of View). See Engine Oil.

E. Engine Cover.

F. Transmission Fluid Cap and Dipstick (Out of View).

See Automatic Transmission Fluid.

G. Brake Master Cylinder Reservoir. See Brakes.

H. Engine Coolant Surge Tank and Pressure Cap. See Engine Coolant.

I. Battery (Out of View).

See Battery.

J. Remote Positive (+) Terminal.

See Jump Starting.

K. Remote Negative (−) Terminal (Out of View). See Jump Starting.

L. Engine Compartment Fuse Block.

M. Windshield Washer Fluid Reservoir. See Washer Fluid.
