Safety Locks
The vehicle has rear door security locks to prevent passengers from opening the rear doors from the inside.
Open the rear doors to access the security locks on the inside edge of each door.

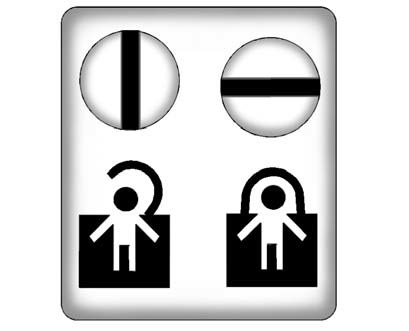

To set the locks, insert a key into the slot and turn it to the horizontal position. The door can only be opened from the outside with the door unlocked. To return the door to normal operation, turn the slot to the vertical position.
See also:
Video Display Screens
The video display screens are located on the back of each head restraint.
Notice: Avoid directly touching the video screen, as damage can occur. See “Cleaning
the Video Screens” later in this sec ...
Map Database Information
Use the Map Database Information/ Remove Map Data screen button to view the coverage
areas of the map database or to replace the map database.
1. Press the Map Database Information/Remove Map Dat ...
Audio/Video (A/V) Jacks
Yellow: Video Input
White: Left Audio Input
Red: Right Audio Input
The A/V jacks, located on the rear of the floor console, allow audio or video
signals to be connected from an auxiliary device ...
